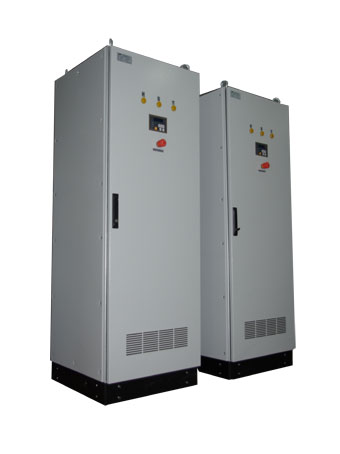

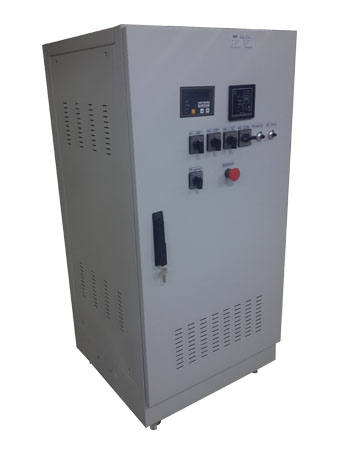

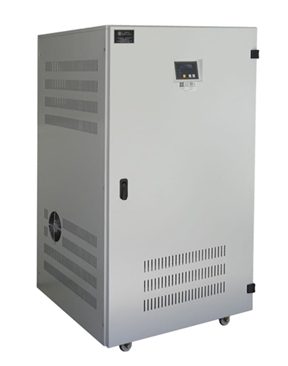

Three Phase Rectifiers are rectifier type with 3 phase input thyristor module. It is the ideal solution for quality DC signaling in small and medium-sized businesses. LC filter can be added depending on the desired Ripple (DC ripple) level. It can also be used for battery charging when desired.
It can be produced as 6 pulses, 12 pulses and 18 pulses for output signal quality. Thanks to 12 pulse and 18 pulse applications, the THD value is reduced and the cosQ value is kept at 0.9.
Output voltage, output current, input voltage, frequency and fault status information can be monitored via the 2×16 LCD screen. 100 past fault information can be accessed.
It is microprocessor controlled. The user is informed about the operating status of the device via RS232, 0-10VDC or 4-20 mA signal, Modbus and dry contact. It has current and voltage adjustment possibilities.
It can be used battery powered in uninterrupted DC welding applications. With the battery low protection unit, protection is provided by preventing the battery from discharging until the end of discharge. Where there is output voltage sensitivity, a solution is produced by using a dropper diode.

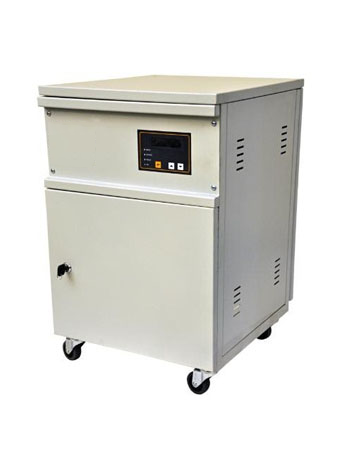

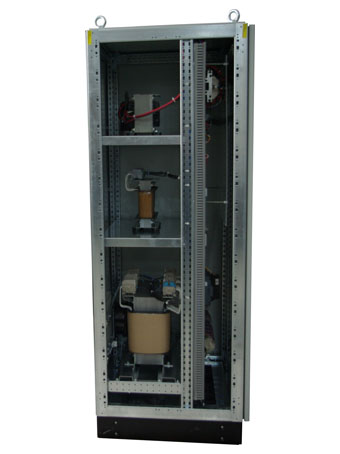

It can be easily transported thanks to its wheels. Additionally, models with aesthetic bases and fixings suitable for panel rooms are available. With its isolated transformer and thyristor structure, it is suitable for working under very severe conditions and the risk of malfunction is close to zero. The warranty period is 3 years.
Three Phase Rectifier General Features
➤ Giriş İzolasyon Trafosu
➤ L-C Filtre
➤ Mikroişlemci kontrollü
Tristör- tristör Modül Yapı
➤ Soft start açılış
➤ 4X20 Satır LCD
➤ EMI filtre
➤ Equalizing şarj, Float şarj, Boost Şarj seçenekleri
➤ 6 pals, 12 pals, 18 pals seçenekleri (kaliteli DC işaret için)
➤ Akım kaynağı ve gerilim kaynağı olarak kullanabilme
➤ 12/24V/48V/110V/220V/500VDC üretim seçenekleri
➤ 10A – 1.000ADC aralığında üretim.
➤ Otomatik veya manuel şarj modları seçimi
➤ IU0U şarj karakteristiği
➤ Dropper diyot ile çıkış gerilim hassasiyeti
➤ Remote kontrol olanağı
➤ Şebeke kesilmesi durumunda aküyü izleme, akü düşük bilgisi ve koruması
PROTECTIONS
➤ Overcurrent (electronic)
➤ Short circuit (electronic)
➤ Semiconductor Overheat
➤ Transformer overheat
➤ DC high (electronic)
➤ DC Low (electronic)
➤ Mains high (electronic)
➤ input fuse
INDICATORS
➤ 4×20 Line LCD screen
➤ Input voltage, output voltage, output current, error information tracking
➤ Display language selection (English, Turkish)
➤ LED status notification
➤ Option to add analog voltmeter and analog ammeter.
LINKS
➤ Input terminal
➤ DC output terminal
