Iron Removal rectifier (otherwise known as magnet rectifier or magnet rectifier) ​​is used to remove iron-like materials by energizing the magnet coil by remote control. It is a kind of electronic magnet. It is also called crane rectifier.

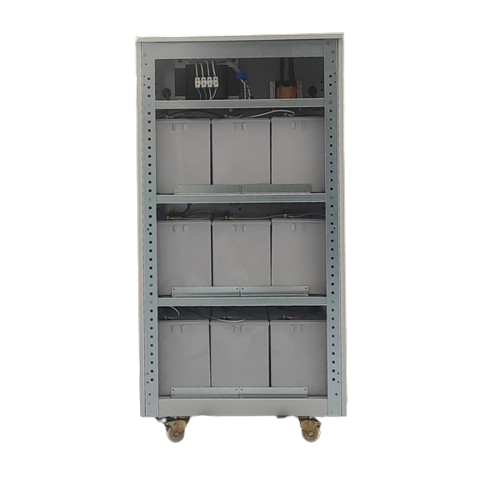

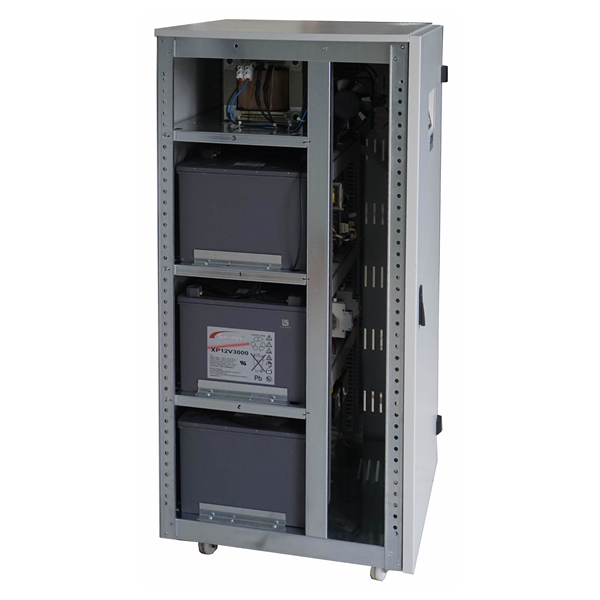

The output contactor is protected with a special protection unit. More than one crane can be controlled separately. It is produced between 1kw and 100kw as 120VDC and 220VDC. By using batteries of appropriate capacity, safe operation is achieved in cases of power outage.

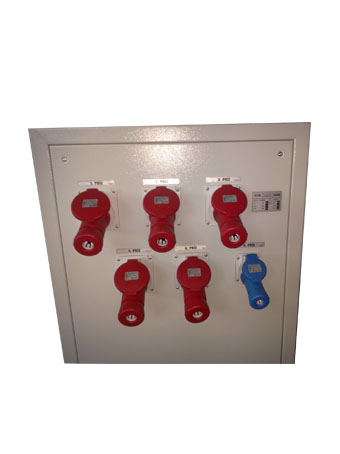

Iron lifting rectifiers (magnet rectifiers) can be produced with special type input and output sockets upon request. It has an isolated transformer and thyristor control. There is excessive iron dust and excessive humidity in the places where it is used. Thanks to their protection measures, they are very durable products for environments containing humidity and metallic dust and do not malfunction.

Optionally, dry contact information and information about the operating status of the rectifier are given to the user. It has the opportunity to operate any crane remotely in accordance with the number of cranes.

General Features

➤ Input Isolation Transformer
➤ L-C Filter
➤ Microprocessor controlled
➤ Thyristor – thyristor Module Structure
➤ soft start opening
➤ 2X16 Line LCD
➤ EMI filter
➤ Interior lighting lamp
➤ Serial connection via board
➤ emergency stop button
➤ Dry Contact information
➤ In-panel spare AC socket
➤ fiberglass protection
➤ 24V/48V/110V/220V/500VDC options
➤ Production in the range of 10A – 1,000ADC.
➤ 6 pulse or 12 pulse options
➤ Choice of automatic or manual charging modes
➤ Output voltage regulation with dropper diode
➤ Battery monitoring, battery low information and protection in case of mains failure
➤ Modbus communication
➤ Monitoring and control via RS232-RS485
➤ Plinth height option to suit your needs

PROTECTIONS

➤ Overcurrent (electronic)
➤ Short circuit (electronic)
➤ Semiconductor Overheat
➤ Transformer overheat
➤ DC high (electronic)
➤ DC Low (electronic)
➤ Mains high (electronic)
➤ input fuse
➤ DC Output fuses
➤ DC Distribution fuses
➤ Emergency protection button

INDICATORS

➤ 2×16 Line LCD screen
➤ Input voltage, output voltage, output current, error information tracking
➤ Display language selection (English, Turkish)
➤ Output voltage Analog or Digital voltmeter
➤ Output current Analog or Digital ammeter
➤ LED status notification

REMOTE ACCESS

➤ ON-OFF Control
➤ Rectifier Start
➤ Output voltage adjustment with 0-10V control
➤ 0-10V control Output Current Adjustment

TERMINALS

➤ input terminals
➤ DC output terminals
➤ Remote control terminals
➤ Warning information
➤ Operating status analog information

WARNING and OPERATING CONDITION INFORMATION

➤ DC High (Dry contact)
➤ DC Low (Dry contact)
➤ Mains High (dry contact)
➤ Excessive Heat (dry contact)
➤ Overcurrent (dry contact)
➤ Earth leakage (Dry contact)
➤ Output voltage information with analog signal (0 – 10V or 4-20 mA)
➤ Current information with analog signal (0 – 10V or 4-20 mA)
