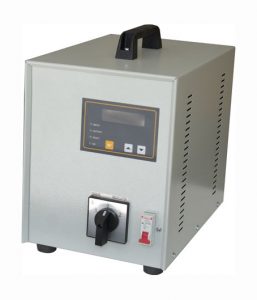

3 KVA Static Stabilizator
3 KVA static stabilizator; One of the methods found to solve the imbalances in the mains voltage is single-phase static stabilizator. It is microprocessor controlled. Due to their thyristor structure, their correction speed is very high.
Artsan Single Phase static stabilizator is microprocessor controlled and does not contain any mechanical parts. For this reason, there is no possibility of malfunction due to wear. It is long lasting.
3 kVA single phase static stabilizator offer an efficiency advantage of 10-20% compared to a quality servo stabilizator and 30% compared to poor quality servo stabilizator in idle situations. It amortizes the price difference with the servo stabilizator with 1 year of savings.
Thanks to the 2×16 LCD screen, information about the operating status of the device and past malfunctions can be followed. Depending on the place of use, models with output sockets are available.
It is lightweight and small in size. For example; While the servo stabilizator to be used for residences are 29 kg and 55x40x30 cm in size, the static stabilizator of the same power weighs 15 kg and has dimensions of 24x25x32 cm. In this way, the problem of finding a place for the stabilizator in residences and offices is eliminated.
It can also be easily carried with its carrying handle. With this feature, it offers great advantages for mobile applications (musicians, welders, etc.).
It is the ideal solution especially for home, villa and small office users due to its silent operation feature, economic advantages, light weight and small size.
It is especially used as a voltage stabilizator for white goods used at home, such as televisions, combi boilers, washing machines and refrigerators.
General Features
➤ Completely domestic production
➤ Microprocessor controlled
➤ Full sine output waveform
➤ 1-3% output voltage sensitivity
➤ 5000 V/sec correction speed
➤ small dimensions,
➤ Light
➤ Economical
➤ Semikron brand thyristor modules
➤ DUCATI brand outlet filter
➤ Large voltage correction range
➤ 10000 – 22,000 gauss sheet metal
➤ Class H copper or aluminum winding
➤ Aluminum or copper Foil wrap
➤ Adjustable output voltage
➤ Overheat protection
➤ Overcurrent protection
➤ Output voltage high protection
➤ Output voltage low protection
➤ 2×16 LCD
➤ Input and output voltage monitoring
➤ Fault information tracking
➤ Manual Bypass
➤ Cooling with fan
➤ Silent operation
➤ Carrying handle
➤ Conditions test
➤ Socket or terminal connection option
➤ IP 20 – IP65 Protection class
➤ CE and ISO-9001 certified
➤ Special packaging

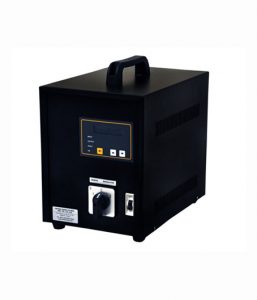

5 KVA Static Stabilizator
5 KVA Static stabilizator; One of the methods found to solve the imbalances in the mains voltage is single-phase static stabilizator. It is microprocessor controlled. Due to their thyristor structure, their correction speed is very high.
Artsan Single Phase static stabilizator is microprocessor controlled and does not contain any mechanical parts. For this reason, there is no possibility of malfunction due to wear. It is long lasting.
5 kVA single phase static stabilizator offer an efficiency advantage of 10-20% compared to a quality servo stabilizator and 30% compared to poor quality servo stabilizator in idle situations. It amortizes the price difference with the servoregulator with 1 year of savings.
Thanks to the 2×16 LCD screen, information about the operating status of the device and past malfunctions can be followed. Depending on the place of use, models with output sockets are available.
It is lightweight and small in size. For example; While the servo stabilizator to be used for residences are 29 kg and 55x40x30 cm in size, the static stabilizator of the same power weighs 15 kg and has dimensions of 24x25x32 cm. In this way, the problem of finding a place for the stabilizator in residences and offices is eliminated.
It can also be easily carried with its carrying handle. With this feature, it offers great advantages for mobile applications (musicians, welders, etc.).
It is the ideal solution especially for home, villa and small office users due to its silent operation feature, economic advantages, light weight and small size.
It provides ideal voltage regulation for white goods used at home, such as refrigerators, washing machines, dishwashers and televisions.

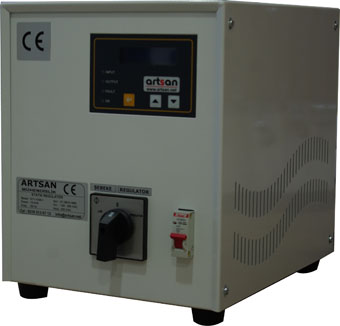

7.5 kva Static Stabilizator
7.5 KVA Static stabilizator; It is used in small businesses, offices and homes. One of the methods found to solve the imbalances in the mains voltage is single-phase static stabilizator. It is RISC type Microprocessor controlled. Due to their Thyristor-Thyristor module structure, their correction speed is very high.
7.5 kVA single-phase static stabilizator offer an efficiency advantage of 10-20% compared to a quality servo stabilizator and 30% compared to poor quality servo stabilizator in idle operating situations. It amortizes the price difference with the servoregulator with 1 year of savings.
Thanks to the 2×16 LCD screen, information about the operating status of the device and past malfunctions can be followed. Depending on the place of use, models with output sockets are available.
It is lightweight and small in size. For example; While the servo stabilizator to be used for residences are 29 kg and 55x40x30 cm in size, the static stabilizator of the same power weighs 15 kg and has dimensions of 24x25x32 cm. In this way, the problem of finding a place for the stabilizator in residences and offices is eliminated.
It can also be easily carried with its carrying handle. With this feature, it offers great advantages for mobile applications (musicians, welders, etc.).
It is the ideal solution especially for home, villa and small office users due to its silent operation feature, economic advantages, light weight and small size.
It provides ideal regulation for diode laser epilation devices, cavitation devices and RF devices used in beauty centers.
10KVA Static Stabilizator
10KVA Static Stabilizator; It is used to supply connected devices with stable energy against the imbalance in the mains voltage. Single phase input, single phase output. It is easy to use with its input plug cable and 3 output sockets.
It is produced from semiconductor materials with thyristor-thyristor modules. It is microprocessor controlled. Since it corrects the results of samples taken in 20 ms periods, the regulation speed is 5,000 V/sec.
It regulates with the DAA method. With the help of the by-pass pako switch on it, operation continues in case of a malfunction in the stabilizator. A fuse is used to protect against overcurrent.
With the help of input and output filters used in the 10KVA Static stabilizator, protection is provided against instantaneous peak voltage jumps in the network.
Input and output voltages are monitored with the help of the LCD panel. Additionally, 10 previous fault information can be accessed.
Cooling is done without fan. Since it does not contain any mechanical parts, it operates silently. For this reason, it is especially preferred in apartments and offices.
Because of its light weight and small size. It can be easily carried with the help of the carrying handle.
Dimensions: 24 x 25 x 32 cm
Weight: 22 kg
15KVA Static Stabilizator
15 kva stabilizator; It is used to supply devices with stable voltage in case the mains voltage is irregular. It has 1 phase input and 1 phase output. It automatically corrects. While terminal blocks are used for input and output connections, optionally up to 3 sockets can be used for the output.
15 kva single phase stabilizator; It is manufactured from Semikron brand Thyristor-module semiconductor materials. It is RISC based microprocessor controlled. Since it is regulated as a result of sampling with a 20 msec cycle, its speed is between 2,000 V/sec and 5,000 V/sec, depending on the state of the correction network and the number of thyristors used.
It regulates automatically electronically using the DAA method. With the help of the by-pass pako switch on it, operation continues in case of a malfunction in the stabilizator. A fuse is used to protect against overcurrent, and optional electronic overcurrent protection is also available.
With the help of input and output filters used in the 15KVA Static stabilizator, protection is provided against instantaneous peak voltage jumps in the network.
Input and output voltages are monitored with the help of the LCD panel. Optional options are available to monitor the output current on the LCD panel. Additionally, 50 past fault information can be accessed from the front panel menu.
Cooling is done using a smart fan system. Thus, longer fan life was achieved. It operates silently since there are no mechanical parts inside. Due to this feature, it is especially preferred in apartments and offices in quiet environments.
It is small in size and lightweight. It can be easily transported thanks to its wheeled structure and carrying handle.
15 kva single phase stabilizator dimensions and weights
Dimensions: 28 x 40 x 52 cm
Weight: 35 kg
20 KVA Static Stabilizator
20 kva single phase static stabilizator; It is produced from Semikron brand Thyristor-thyristor module materials, which is the highest quality brand in the world. It is microprocessor controlled. Since it regulates the measurement result in 20 ms periods, the correction speed is between 2,000 V/sec and 5,000 V/sec, depending on the network condition and the number of thyristors used.
It regulates automatically electronically using the DAA method. In case of a malfunction in the stabilizator, the by-pass switch on it is used to continue operating from the network. A fuse is used to protect against overcurrent, and optional electronic overcurrent protection is also available.
It has electronic protections such as overheat, low voltage, high voltage, thyristor error and overcurrent. An automatic by-pass unit can be added according to the user’s request.
With the help of input and output filters used in the 20KVA Static stabilizator, protection is provided against instantaneous peak voltage jumps in the network.
Input and output voltages are monitored with the help of the LCD panel. Optional options are available to monitor the output current on the LCD panel. Additionally, 50 past fault information can be accessed from the front panel menu.
Cooling is done using a smart fan system. Thus, longer fan life was achieved. It operates silently since there are no mechanical parts inside. Due to this feature, it is especially preferred in apartments and offices in quiet environments.
It is small in size and lightweight. It can be easily transported thanks to its wheeled structure and carrying handle.
20 kva single phase stabilizator dimensions and weights
Dimensions: 28 x 40 x 52 cm
Weight: 55 kg
