Machines that must be used in open environments are also affected by extreme changes in voltage. In cases where the network is low or high, they either malfunction or do not work.

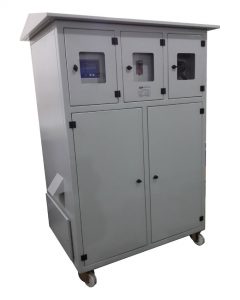

However, standard type static stabilizator are exposed to excessive heat created by sunlight, rain, snow, etc. They cannot be used in open environments as they may malfunction for various reasons. As our special solution for such situations, we produce Outdoor type static stabilizator. The inner walls of these stabilizator cabinets are covered with thermal insulation materials against sunlight and are designed in accordance with IP54, IP65 standards to prevent rain and similar liquid ingress. Additionally, special filters have been added to the ventilation inlets to prevent the entry of dust particles.
It can also be used easily in places where there is no place to mount it in closed areas and it is necessary to place it outdoors in hospitals, factories, residences, etc.
Protection is provided with a surge arrester to protect against the effects of lightning strikes due to the external environment.
The electronic semiconductor materials used for regulation purposes in the external type static stabilizator have been selected to suit these harsh conditions.
Agricultural irrigation systems, tower cranes used on construction sites, on the sides of piers to provide regular energy to ships, etc. It can be used safely under severe conditions.
Electricity consumption is minimized with the high efficiency achieved by using silicon mixed sheet metal in stabilizator transformers. H0 class enamel coated copper wires that are resistant to 200 C heat are used in the winding of the transformers. Thanks to the protection unit, the static stabilizator is disabled in risky situations (high voltage, low voltage, overcurrent, overheat).
General Features
➤ External type (outdoor) IP54 – IP65
➤ Thermal insulation on inner walls against sunlight
➤ Protection against dust with filter
➤ Protection against rain, snow and all kinds of liquids
➤ Special heating and cooling systems inside the cabin
➤ LCD screen with fiberglass shield
➤ Completely domestic production
➤ Semikron brand thyristor modules
➤ Socomec brand changeover switch
➤ ABB brand Compact switch
➤ DUCATI brand outlet filter
➤ Microprocessor controlled
➤ Full sine output waveform
➤ 1-3% output voltage sensitivity
➤ 000 V/sec correction speed
➤ With booster transformer/ booster transformer structure
➤ small dimensions,
➤ Earth leakage protection
➤ Surge arrester protection
➤ Large voltage correction range
➤ 000 – 22,000 gausse sheet metal
➤ Class H copper or aluminum winding
➤ Aluminum or copper Foil wrap
➤ Adjustable output voltage
➤ Overheat protection
➤ Overcurrent protection
➤ Output voltage high protection
➤ Output voltage low protection
➤ Input and output voltage monitoring
➤ Fault information tracking
➤ Manual Bypass
➤ Socomec brand changeover switch
➤ Cooling with fan
➤ Silent operation
➤ Wheeled
➤ Conditions test
➤ Socket or terminal connection option
➤ IP 20 – IP65 Protection class
➤ CE and ISO-9001 certified
➤ Special packaging
